RUTM51 is a budget-friendly dual-SIM, multi-network industrial 5G router delivering connectivity for data-heavy applications. With five Gigabit Ethernet ports, dual-band Wi-Fi, and auto-failover, it ensures seamless, reliable performance. Backward compatibility with 4G Cat 12 and a versatile range of interfaces make the RUTM51 5G router a smart, future-proof choice for businesses seeking high-speed connectivity at a lower cost.

COST-EFFICIENT 5G Top-tier 5G speeds at an unbeatable price point
DUAL SIM With auto failover, backup WAN and other switching scenarios
SA & NSA Supports both architectures to leverage the 5G infrastructure
FUTURE-PROOFING Backward compatible with 4G (LTE Cat 12)

Specifications

MOBILE

Mobile module	5G Sub-6Ghz SA/NSA
4G LTE	LTE Cat 20 DL / Cat 18 UL
3G	Supported
5G download speed	Up to 3.4 Gbps
5G upload speed	Up to 900 Mbps
SIM slots	2 x SIM slots (Mini SIM - 2FF)
SIM switch	Auto SIM switching, backup WAN

ETHERNET

WAN ports	1 x 10/100/1000 Mbps WAN port
LAN ports	4 x 10/100/1000 Mbps LAN ports
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Auto MDI/MDIX	Supported

WI-FI

Wi-Fi standard	IEEE 802.11ax (Wi-Fi 6)
Frequency	2.4 GHz and 5 GHz
Wi-Fi data rate	Up to 1800 Mbps
Security	WPA2-PSK, WPA3-PSK, WPA/WPA2 Enterprise
SSID	Multiple SSID support

NETWORK

Routing	Static routing, dynamic routing, policy routing
Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, DHCP, SSH, HTTPS
VPN support	OpenVPN, IPsec, WireGuard, ZeroTier, GRE, PPTP, L2TP
Firewall	Port forwarding, traffic rules, custom firewall rules
Load balancing	Supported
Failover	Automatic WAN failover

INPUT / OUTPUT

Digital input	1 x Digital Input
Digital output	1 x Digital Output
Status monitoring	Input/output status monitoring supported

USB

USB port	1 x USB 3.0 port
Functions	Storage, modem, firmware update support

POWER

Connector	4-pin industrial DC power connector
Input voltage range	9 � 50 VDC
Power consumption	Idle: < 8 W, Max: < 18 W
PoE input	Passive PoE supported
Reverse polarity protection	Supported

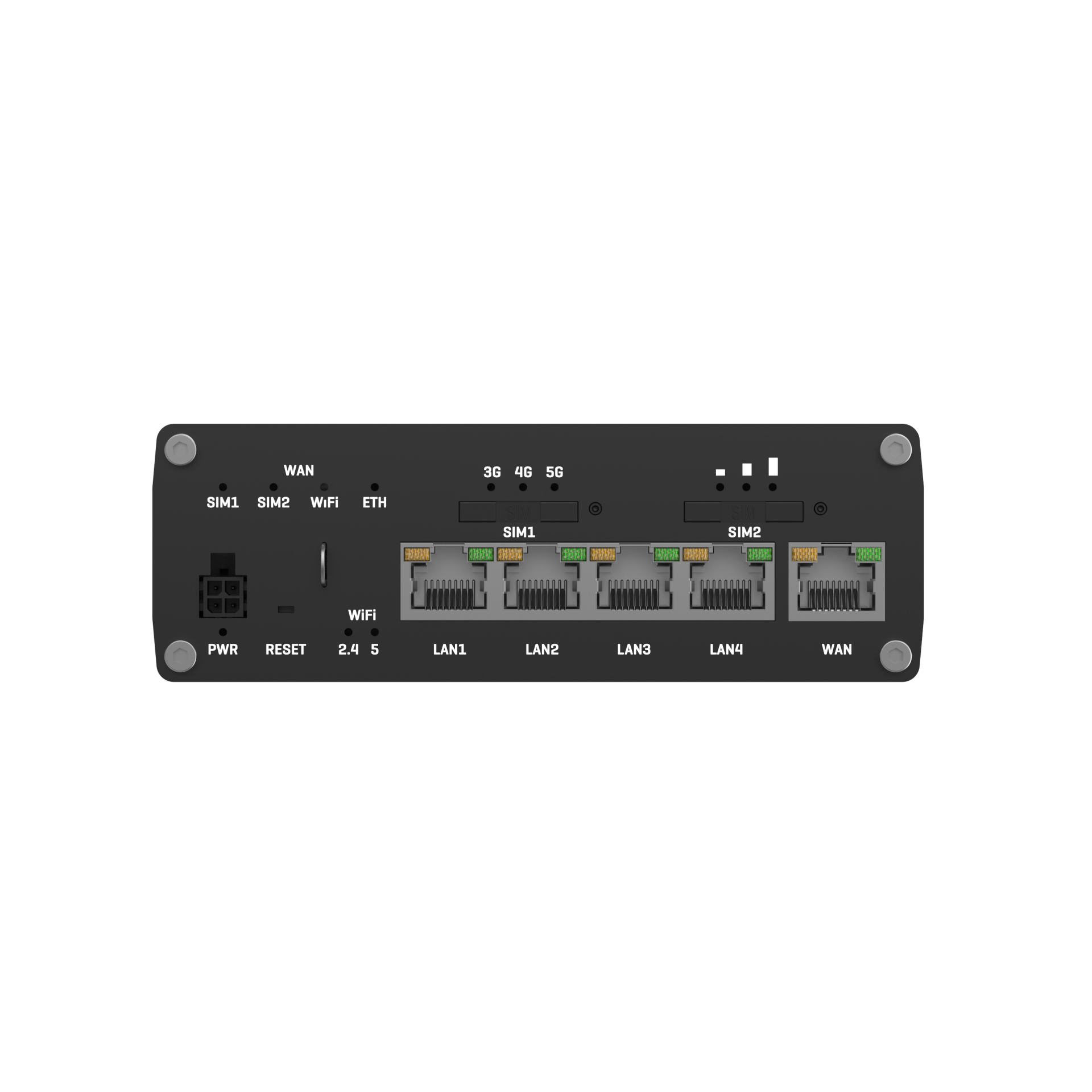

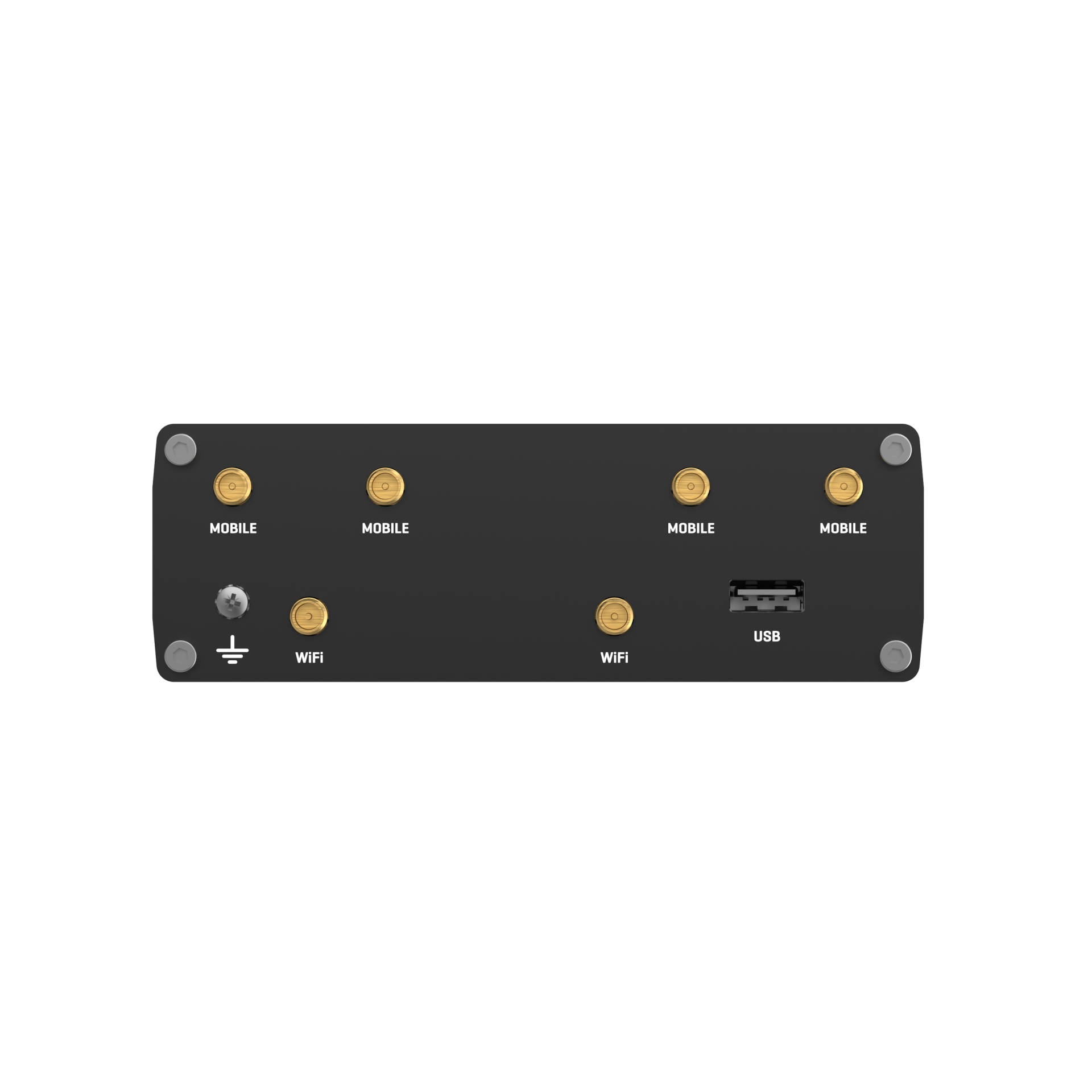

PHYSICAL INTERFACES

Ethernet ports	5 x RJ45 Gigabit Ethernet ports
SIM slots	2 x Mini SIM (2FF)
USB	1 x USB 3.0
Status LEDs	Power, LAN, WAN, Wi-Fi, Mobile signal LEDs
Reset button	Reboot/User default reset/Factory reset button

PHYSICAL SPECIFICATIONS

Casing material	Aluminum housing
Dimensions	132 x 44.2 x 95.1 mm
Weight	Approximately 533 g
Mounting options	DIN rail, wall mount, flat surface

OPERATING ENVIRONMENT

Operating temperature	-40�C to 75�C
Storage temperature	-45�C to 80�C
Operating humidity	10% to 90% non-condensing
Ingress protection rating	IP30
Cooling	Passive cooling (fanless)
