ETHERNET
| Total ports |
28 ports (24 x Gigabit Ethernet + 4 x SFP) |
| Gigabit Ethernet ports |
24 x 10/100/1000 Mbps RJ45 ports |
| PoE+ ports |
12 x PoE+ ports (IEEE 802.3af/at) - Ports 1-12 |
| SFP ports |
4 x Gigabit SFP ports (fiber uplinks) |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Switch architecture |
L2 managed switch with L3 features |
| MAC address table |
8K MAC address entries |
| Switching capacity |
56 Gbps (non-blocking) |
| Packet forwarding rate |
83.33 Mpps |
| Jumbo frame support |
Up to 10000 bytes |
SWITCH FEATURES
| VLAN |
802.1Q VLAN support, port VLAN separation |
| QoS |
Port priority, DSCP priority, 802.1p priority, TOS |
| Port mirroring |
Supported |
| Link aggregation |
LACP support |
| IGMP Snooping |
Supported |
| Spanning Tree |
STP / RSTP support |
| Loop protection |
Supported |
| MRP (Media Redundancy Protocol) |
MRP client role, MRP manager role |
| Industrial protocols |
PROFINET (Class B), EtherNet/IP |
POWER & POE
| Power input |
100-240 VAC, 50/60 Hz (internal power supply) |

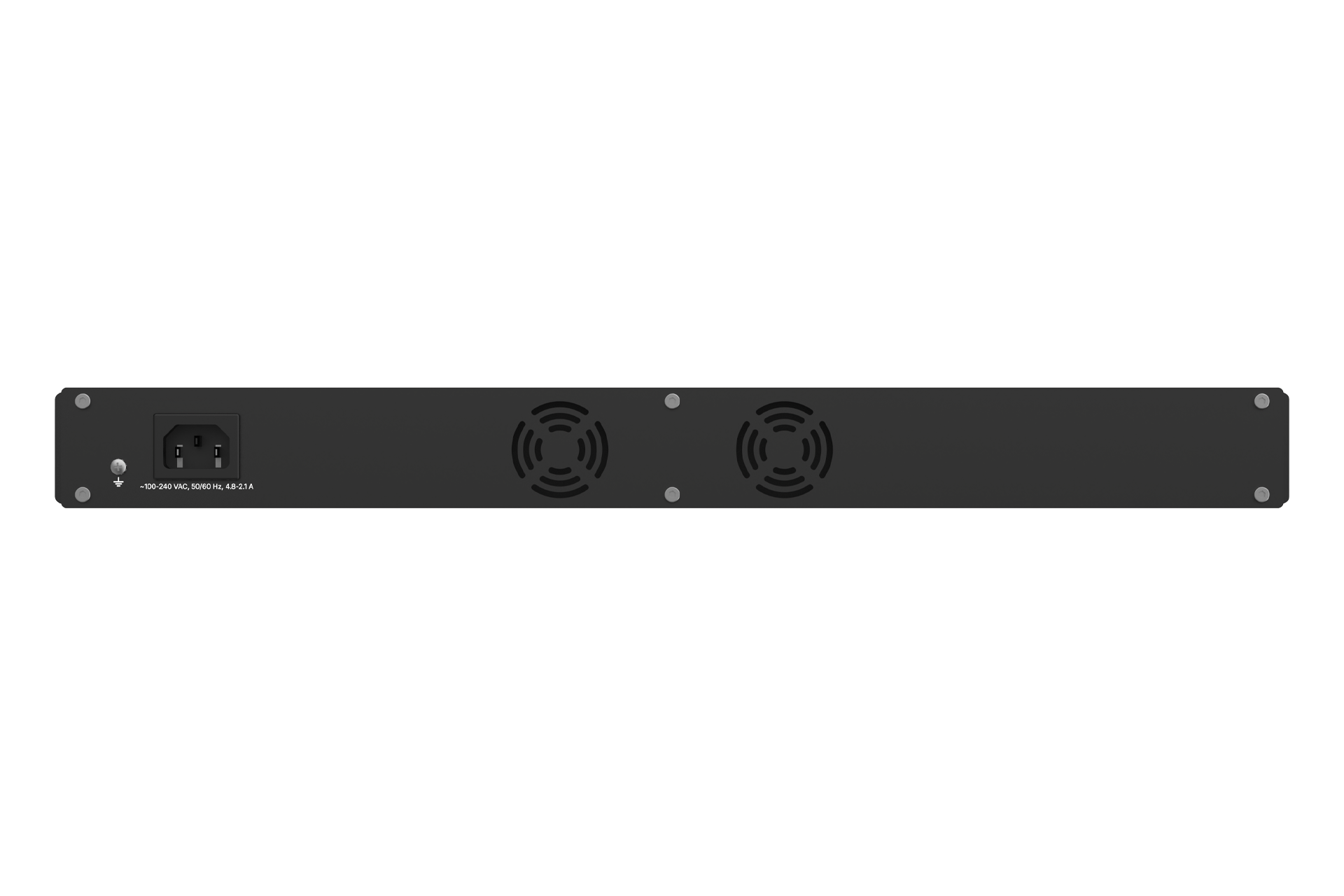

| Power connector |
C14 connector (IEC) |
| Max power consumption |
325 W |
| PoE standard |
IEEE 802.3af (PoE) and IEEE 802.3at (PoE+), Alternative A |
| PoE ports |
12 x PoE+ ports (Ports 1-12) |
| Max PoE power per port |
30 W |
| Total PoE power budget |
300 W |
MANAGEMENT
| Operating system |
TswOS (based on OpenWrt) |
| Web management |
Supported (HTTP/HTTPS) |
| CLI |
Supported (Busybox shell) |
| SNMP |
SNMP v1/v2c/v3 |
| RMS |
Teltonika RMS (Remote Management System) support - 2 years included |
| Firmware upgrade |
Web GUI, TFTP, RMS |
| L3 routing features |
Static IPv4/IPv6 routing, OSPF, BGP, RIP v1/v2, EIGRP |
| DHCP |
DHCP server, DHCP client, DHCP static leases |
PHYSICAL INTERFACES

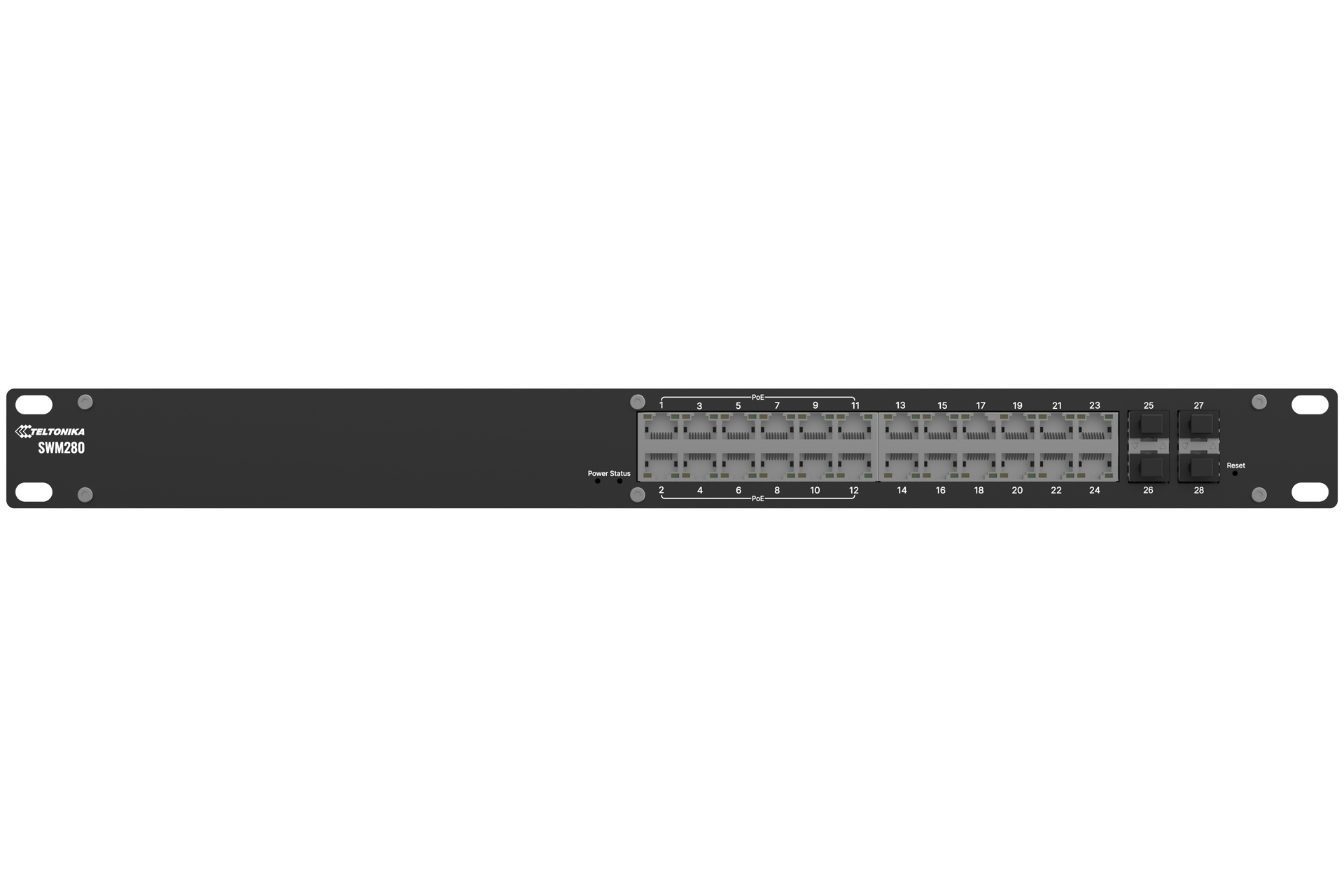

| Ethernet interfaces |
24 x RJ45 Gigabit Ethernet ports (12 PoE+) |
| Fiber interfaces |
4 x SFP slots (1 Gbps) |
| Status LEDs |
Power, PoE, Link/Activity, Speed LEDs |
| Reset button |
Factory reset button |
| Grounding |
Grounding screw |
PHYSICAL SPECIFICATIONS
| Casing material |
Metal (industrial aluminum / steel) |
| Dimensions |

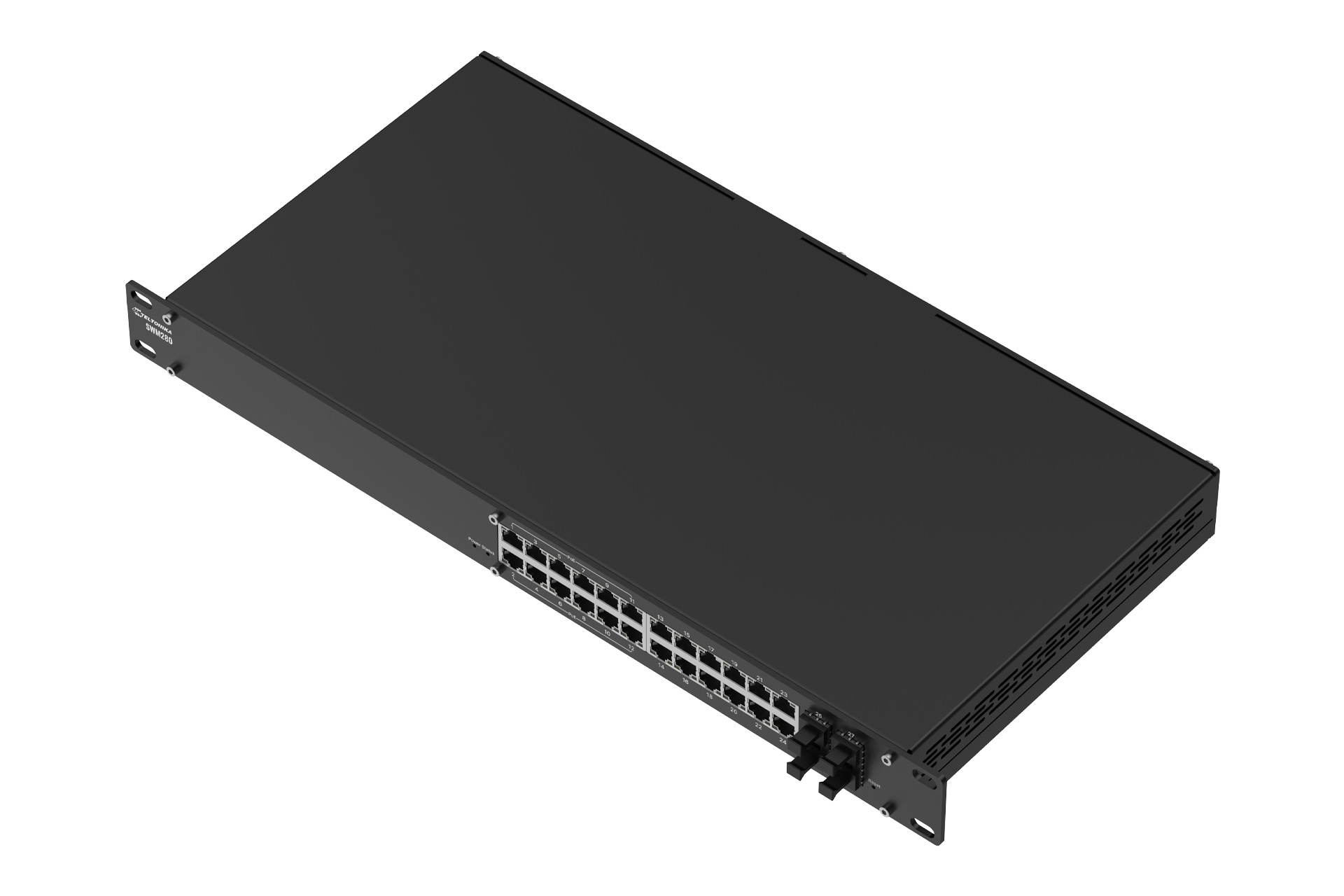

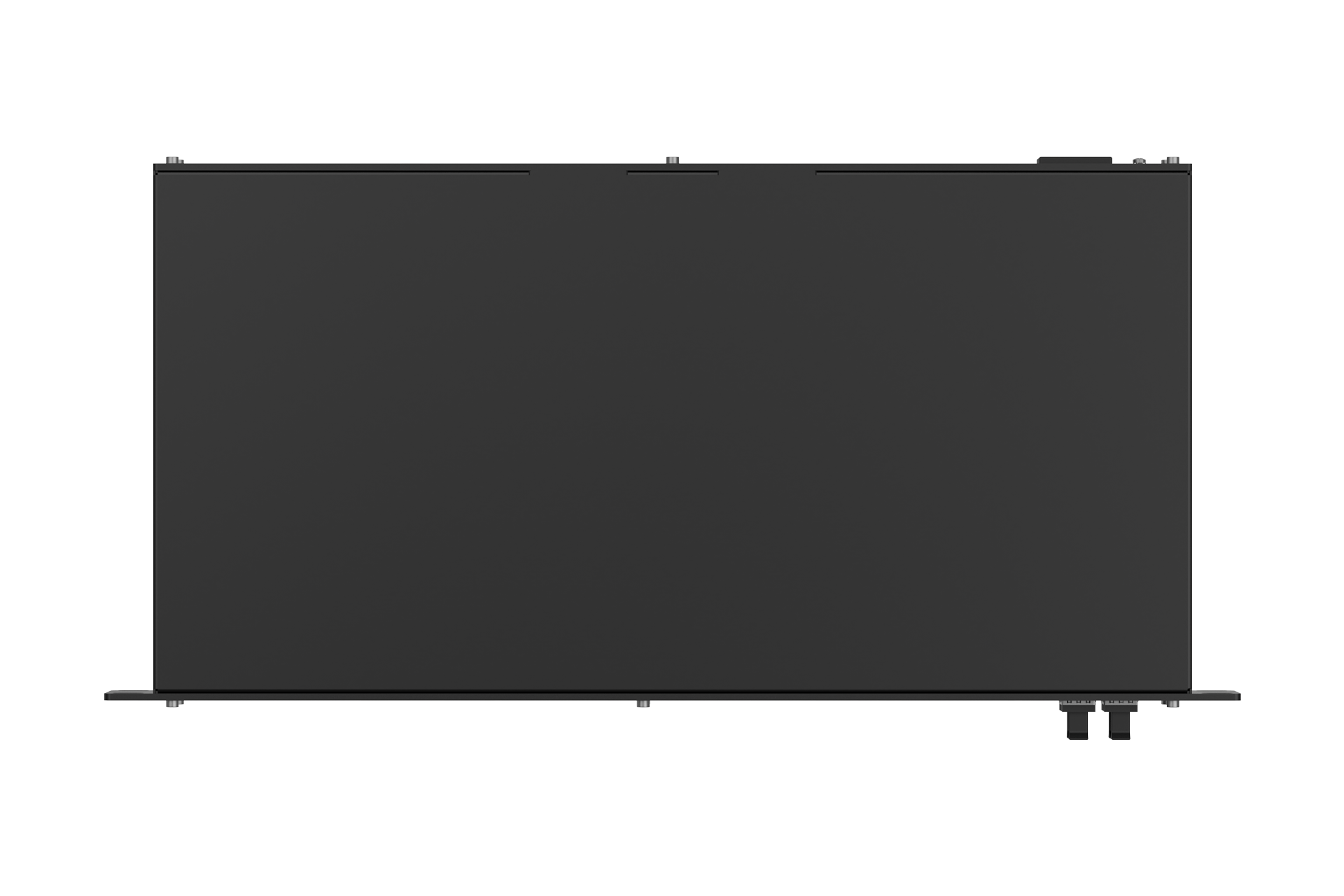

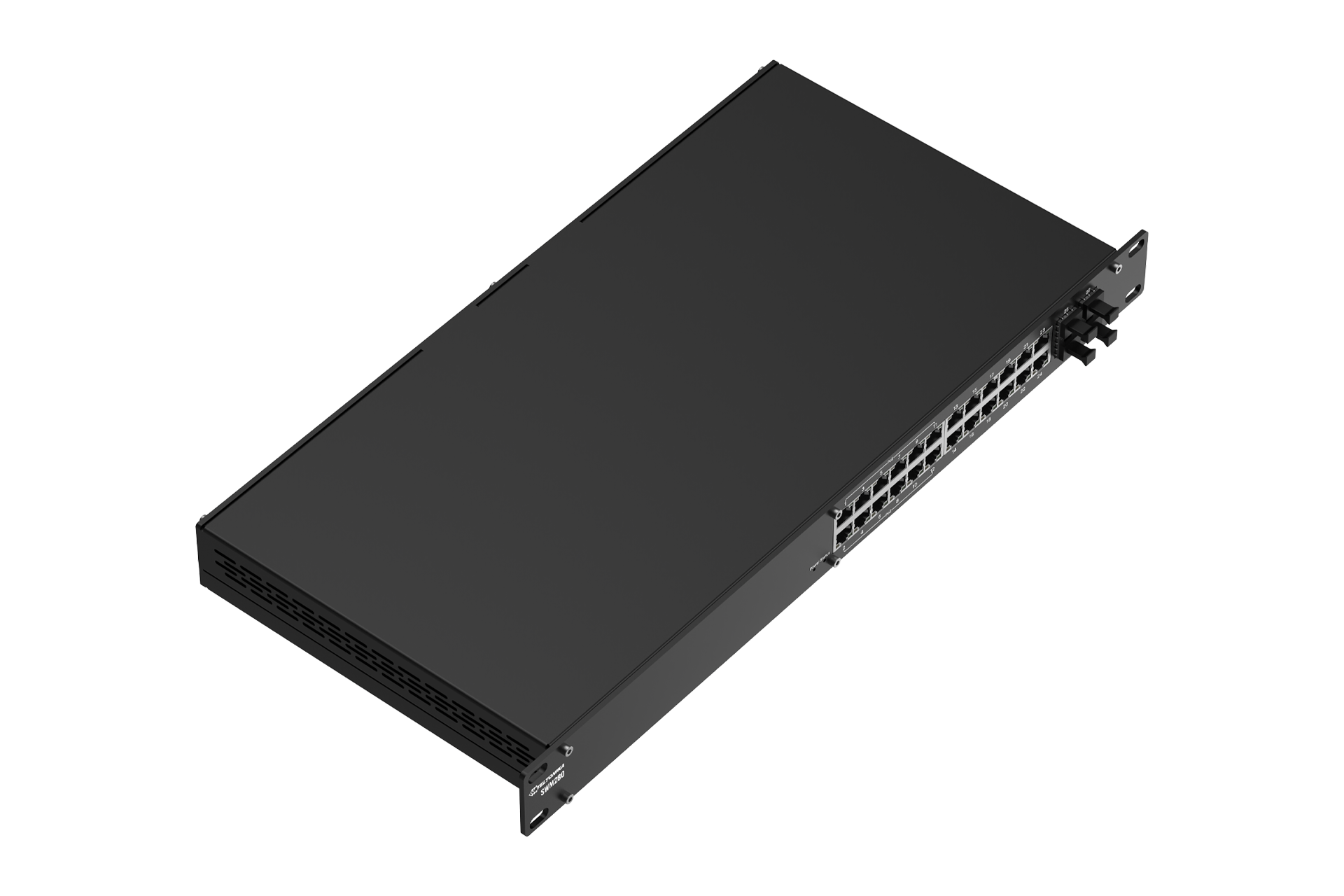

19-inch rackmount form factor (1U) |
| Weight |
Approximately 2.44 kg |
| Mounting |
Rackmount (19-inch) |
| Cooling |
Active cooling (internal fans) |
OPERATING ENVIRONMENT
| Operating temperature |
0°C to 50°C |
| Storage temperature |
-40°C to 70°C (typical for networking equipment) |
| Humidity |
10% to 90% non-condensing |
| Ingress protection |
IP30 |
REGULATORY & CERTIFICATIONS
| EMC certifications |
CE, FCC, IC |
| Industrial certifications |
PROFINET Class B conformance [citation:6] |
| Environmental compliance |
RoHS compliant |
