ETHERNET
| Total ports |
28 x Gigabit Ethernet ports |
| RJ45 ports |
24 x 10/100/1000 Mbps RJ45 ports |
| SFP ports |
4 x Gigabit SFP ports |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Switch architecture |
Managed Layer 2 Ethernet switch |
| MAC address table |
8K MAC address entries |
| Switching capacity |
56 Gbps |
| Packet forwarding rate |
41.7 Mpps |
| Jumbo frame support |
Up to 9 KB |
| Flow control |
IEEE 802.3x flow control support |
SWITCH FEATURES
| VLAN |
802.1Q VLAN support |
| QoS |
802.1p Quality of Service |
| Port mirroring |
Supported |
| Link aggregation |
LACP support |
| IGMP Snooping |
Supported |
| Spanning Tree |
STP / RSTP support |
| Storm control |
Broadcast / multicast storm protection |
| Management interface |
Web GUI, CLI, SNMP |
POWER
| Power input |
100 – 240 VAC |
| Frequency |
50 / 60 Hz |
| Power consumption |
< 30 W |
| Power supply |
Internal AC power supply |
MANAGEMENT
| Web management |
Supported |
| CLI |
Supported |
| SNMP |
SNMP v1/v2c/v3 |
| Firmware upgrade |
Web GUI and TFTP |
| User management |
Password protected access |
PHYSICAL INTERFACES

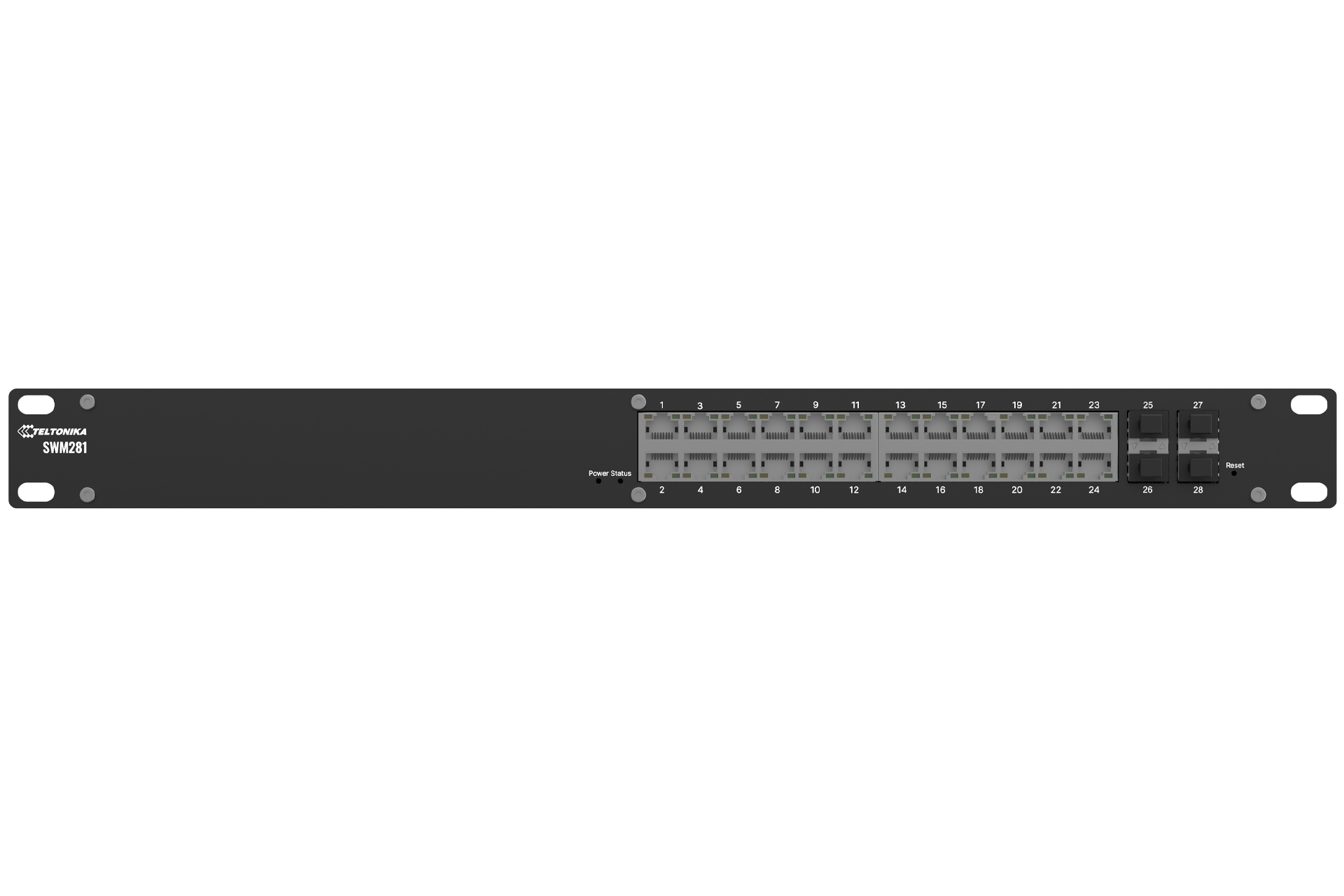

| Ethernet interfaces |
24 x RJ45 Gigabit Ethernet ports |
| Fiber interfaces |
4 x SFP slots |
| Status LEDs |
Power, Link/Activity, Speed LEDs |
| Console port |
RJ45 console port |
| Reset button |
Factory reset button |
PHYSICAL SPECIFICATIONS
| Casing material |
Metal housing |
| Dimensions |
440 x 44 x 220 mm |
| Weight |
Approximately 3.2 kg |
| Mounting |
19-inch rack mountable |
OPERATING ENVIRONMENT
| Operating temperature |
0°C to 50°C |
| Storage temperature |
-20°C to 70°C |
| Humidity |
10% to 90% non-condensing |
| Cooling |
Smart fan cooling |
REGULATORY & CERTIFICATIONS
| EMC certifications |
CE, FCC |
| Safety standards |
IEC 62368-1 |
| Environmental compliance |
RoHS compliant |
