ETHERNET
| ETH Ports |
Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Fiber Ports |
4 x SFP ports |
| IEEE 802.3 Standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad |
INDUSTRIAL PROTOCOLS
| Profinet |
Profinet Class B conformance (available with optional order code) |
SERVICES
| EtherNet/IP |
Yes |
| SNMP |
SNMP V2, V3 |
| LLDP |
Yes |
| Network Management |
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN |
NETWORK
| Routing |
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP) |
| Port Aggregation |
802.3ad (LACP) |
| MRP |
MRP client role, MRP manager role |
| L2 Features |
Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP |
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Multicast |
IGMP snooping, multicast querier support |
| Port Settings |
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features |
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
QoS
| QoS Features |
Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling Method |
SP/WFQ/WRR |
| Bandwidth Control |
Rate limiting, storm control |
| Traffic Shaper |
Port-based shaping |
DIAGNOSTICS
| Diagnostic Tools |
Cable diagnostic, ping, traceroute, nslookup |
| Ping Reboot |
Capability to restart PoE in a specific port |
SECURITY
| Authentication |
PAM - preshared key, Radius & TACACS+, IP & login attempts block |
| VLAN Security |
Port VLAN separation |
| 802.1x |
Port-based network access control client and server |
| MAC Filtering |
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected |
API
| Web API |
Teltonika Networks Web API (beta) support |
| Description |
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. |
SYSTEM CHARACTERISTICS
| CPU |
Realtek, 500MHz, MIPS-4KEc |
| RAM |
128 MB DDR3 |
| Flash Storage |
16 MB serial flash |
FIRMWARE / CONFIGURATION
| WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA |
Update firmware remotely |
| RMS |
Update FW/configuration for multiple devices at once |
| Keep Settings |
Update firmware without losing current configuration |
| Factory Reset |
Restores all system settings, including IP address, PIN, and user data to default manufacturer configuration |
FIRMWARE CUSTOMISATION
| Operating System |
SwmOS (OpenWrt based Linux OS) |
| Supported Languages |
Busybox shell, Lua, C, C++ |
| Development Tools |
SDK package with build environment provided |
| Package Manager |
Service used to install additional software on the device |
PERFORMANCE SPECIFICATIONS
| Bandwidth (Non-blocking) |
56 Gbps |
| Forwarding Rate |
83.33 Mpps |
| Packet Buffer |
512 KB |
| MAC Address Table Size |
8K entries |
| Jumbo Frame Support |
10000 bytes |
PoE OUT
| PoE+ Ports |
Ports 1-24 |
| PoE Standards |
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A |
| Max Power per Port |
30 W |
| Total PoE Budget |
300 W |
POWER
| Connector |
C14 connector |
| Input Voltage Range |
100-240 VAC, 50/60 Hz |
| Power Consumption |
Idle: 9 W / Max: 330 W / PoE Max: 300 W |

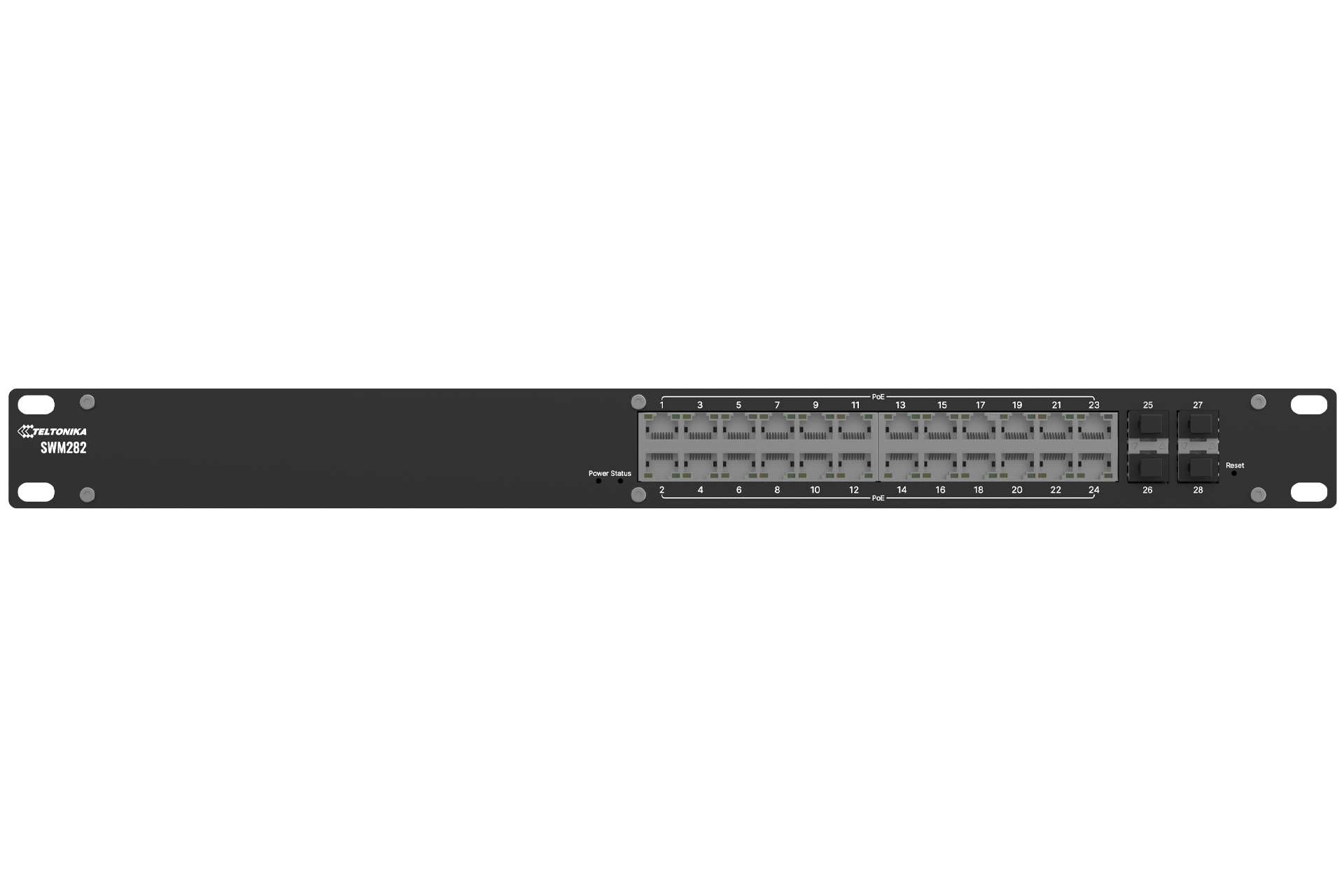

PHYSICAL INTERFACES
| Ethernet |
24 x RJ45 ports, 10/100/1000 Mbps |
| Fiber |
4 x SFP ports |
| Status LEDs |
1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs |

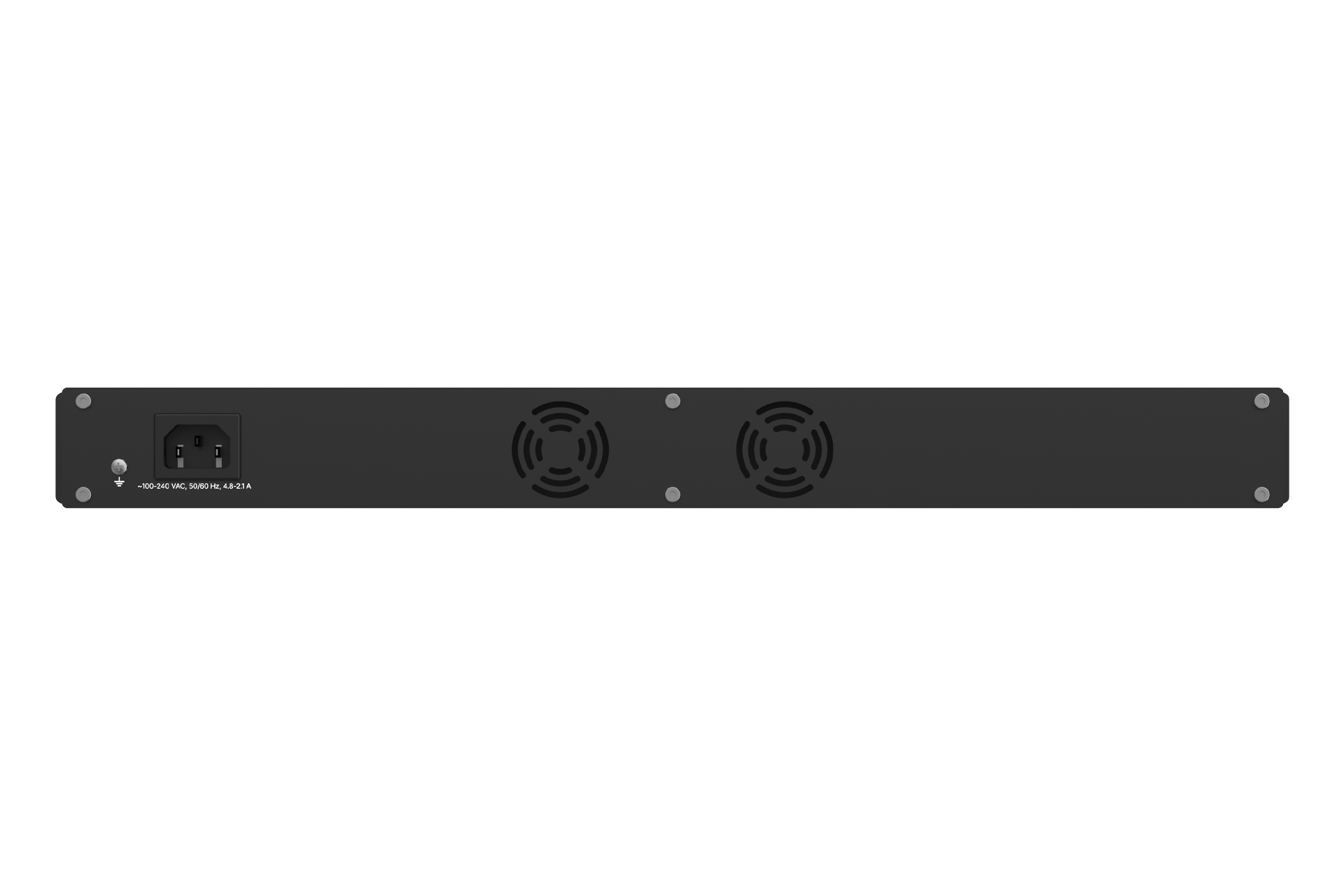

| Power Interface |
1 x C14 connector |
| Reset |
Software reset button |
| Other |
1 x Grounding screw |
| Cooling Type |
Active cooling |
| Fans |
2 X internal fans |
| Airflow Direction |
Side-to-back |
PHYSICAL SPECIFICATIONS
| Casing Material |
Anodized aluminium housing and panels |
| Dimensions (W x H x D) |
483 x 44 x 234 mm |
| Weight |
2291 g |
| Mounting Options |
Rack mounting kit |
OPERATING ENVIRONMENT
| Operating Temperature |
0 °C to 50 °C |
| Operating Humidity |
10% to 90% non-condensing |
| Ingress Protection Rating |
IP30 |
REGULATORY & TYPE APPROVALS
| Regulatory |
CE, UKCA, CB, RCM, FCC, IC |
