ETHERNET
| Ports |
5 x Gigabit Ethernet ports (10/100/1000 Mbps) |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Forwarding method |
Store and forward |
| Auto MDI/MDIX |
Supported |
| Jumbo frame support |
Up to 9216 bytes |
| MAC address table size |
2K entries |
| Packet buffer memory |
128 KB |
| Switching bandwidth |
10 Gbps |
| Forwarding rate |
7.44 Mpps |
POWER OVER ETHERNET (PoE)
| PoE standards |
802.3af and 802.3at |
| PoE ports |
4 x PoE-out ports |
| PoE output pins |
Mode B (4,5 + ; 7,8 -) |
| PoE budget |
120 W total PoE power budget |
| Maximum output per port |
30 W per port |
| PoE input voltage range |
44 - 57 VDC |
POWER
| Connector |
2-pin industrial DC power socket |
| Input voltage range |
44 - 57 VDC |
| Power consumption (idle) |
< 3 W |
| Max power consumption |
< 126 W (with PoE load) |
| Reverse polarity protection |
Supported |
PHYSICAL INTERFACES

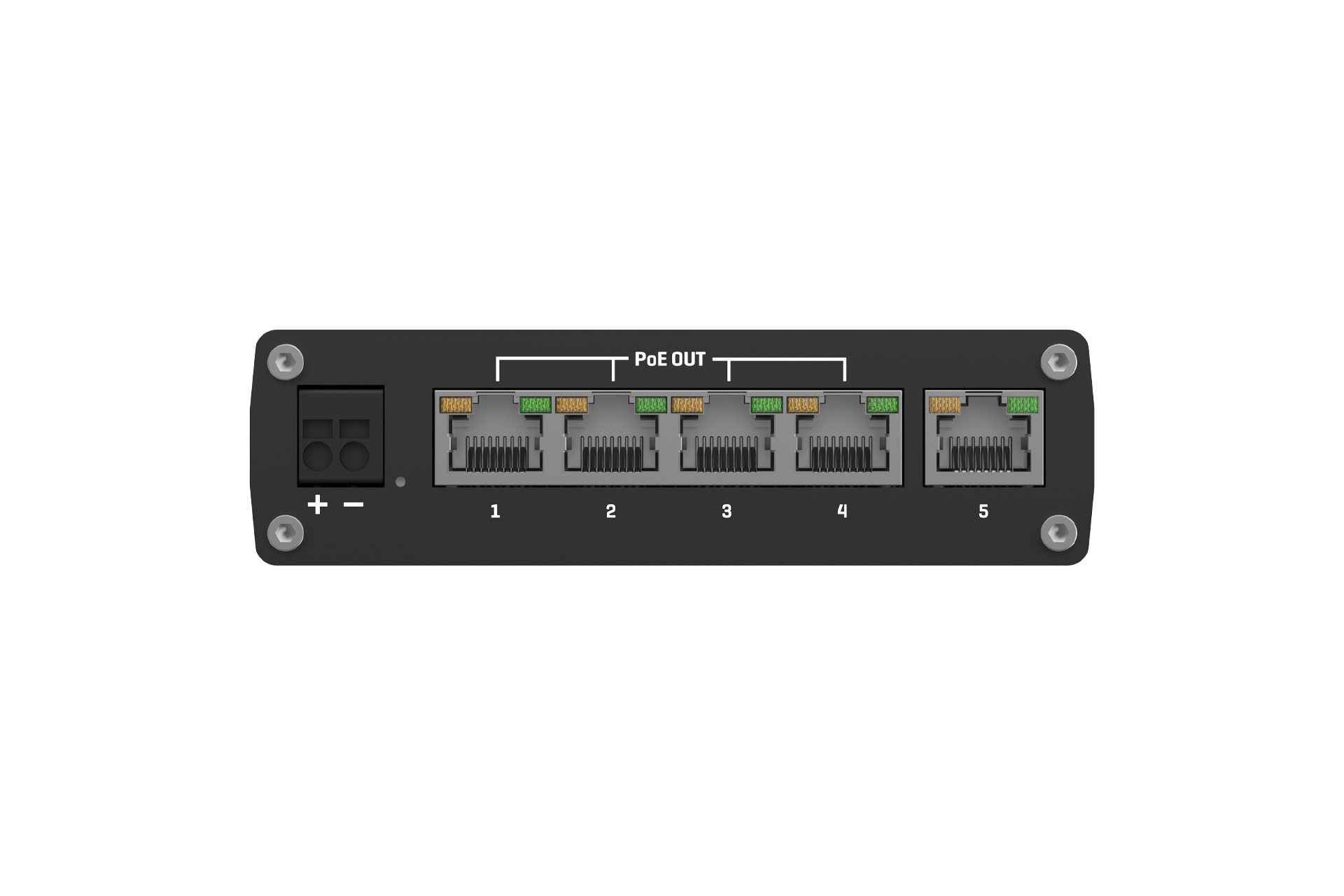

| Ethernet ports |
5 x RJ45 Gigabit Ethernet ports |
| PoE ports |
4 x PoE-out RJ45 ports |
| Status LEDs |
Power LED and Ethernet link/activity LEDs |
| Power connector |
2-pin industrial DC socket |

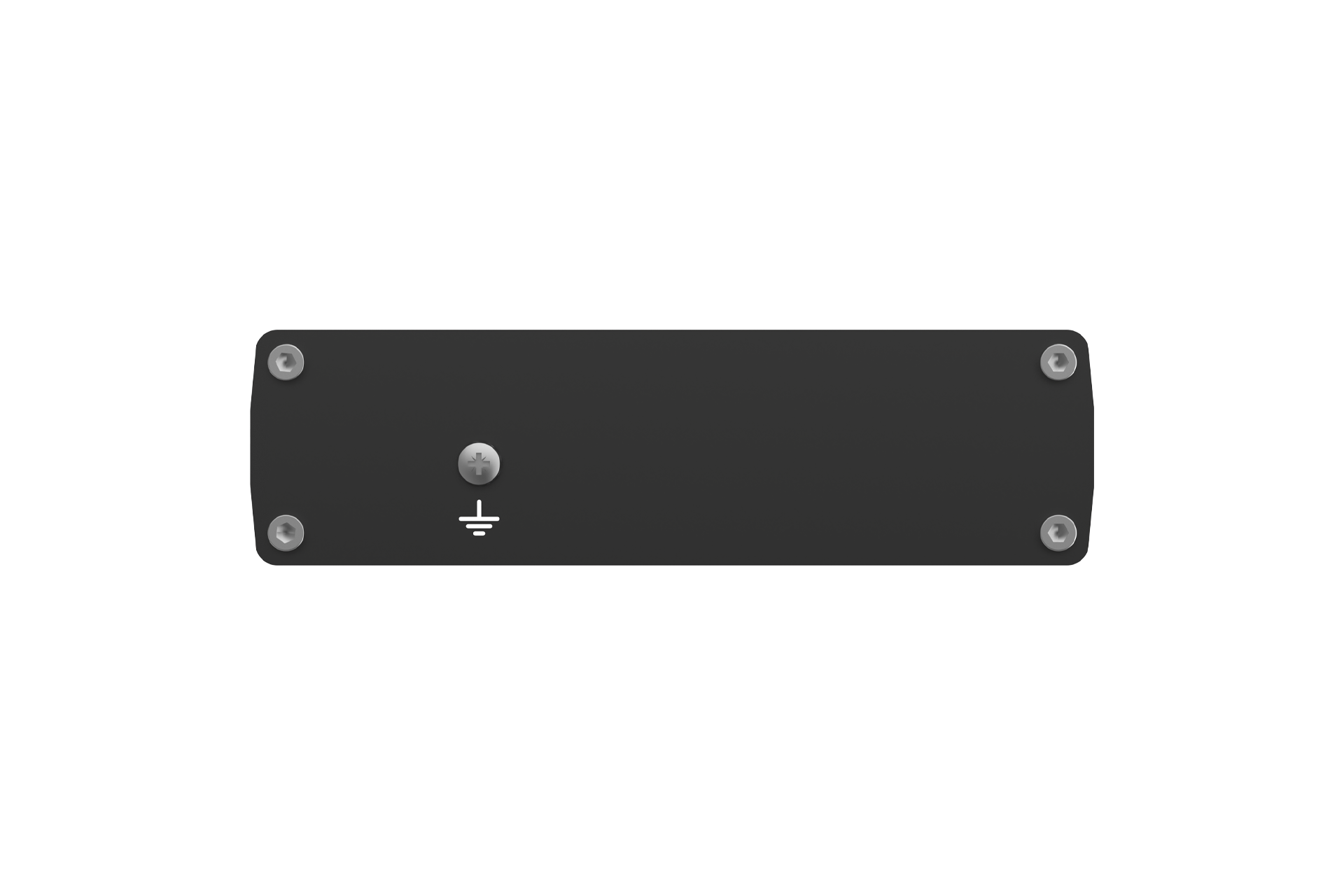

| Grounding |
Grounding screw available |
PHYSICAL SPECIFICATIONS
| Casing material |
Aluminum housing |
| Dimensions |
115 x 32 x 95 mm |
| Weight |
Approximately 410 g |
| Mounting options |
DIN rail and wall mounting |
OPERATING ENVIRONMENT
| Operating temperature |
-40°C to 75°C |
| Storage temperature |
-40°C to 85°C |
| Operating humidity |
10% to 90% non-condensing |
| Ingress protection rating |
IP30 |
| Cooling |
Passive cooling (fanless) |
REGULATORY & CERTIFICATIONS
| EMC |
CE, FCC |
| Safety |
IEC 62368-1 |
| Environmental |
RoHS compliant |
